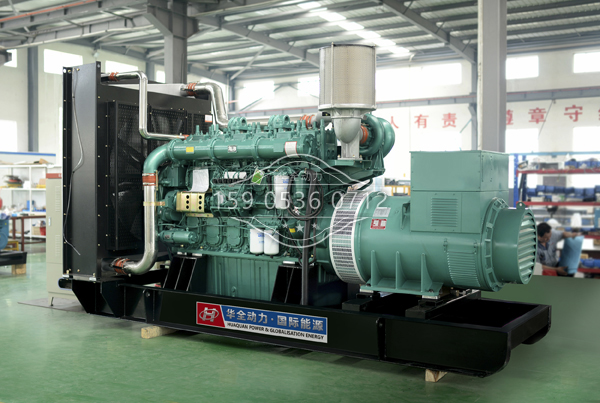

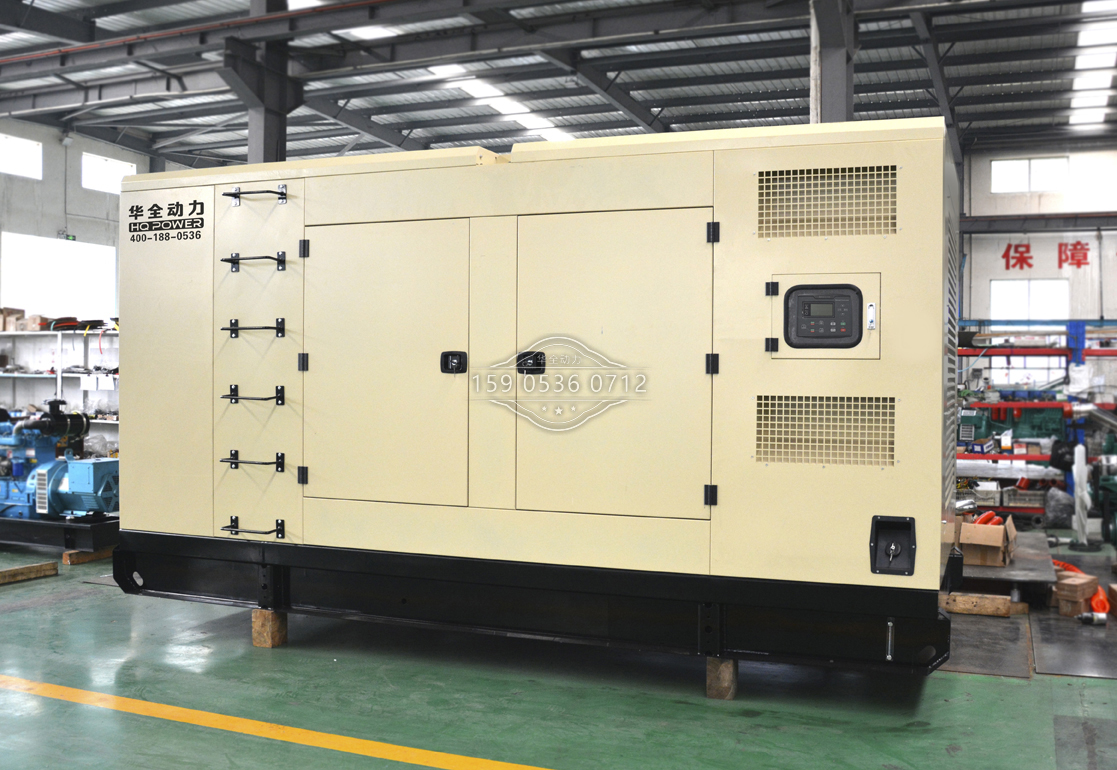

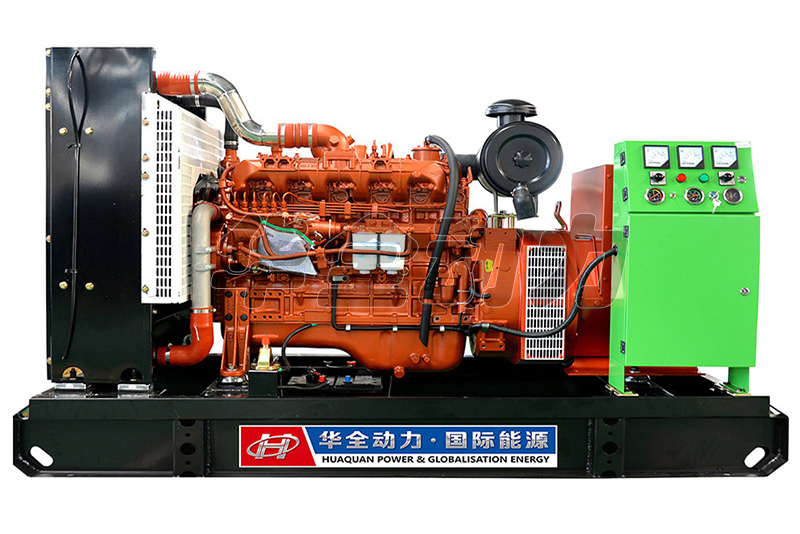

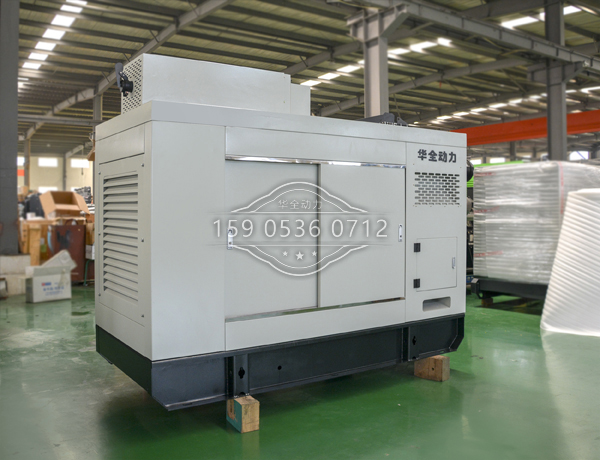

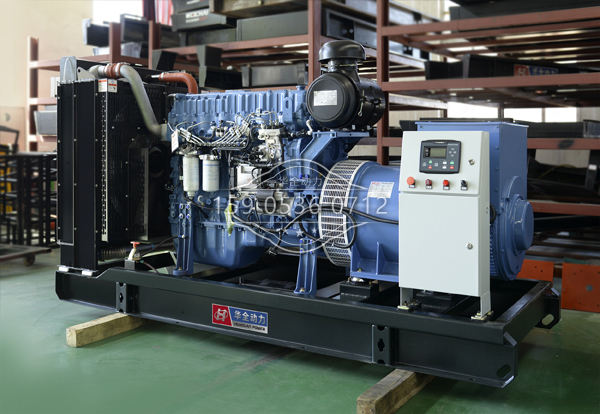

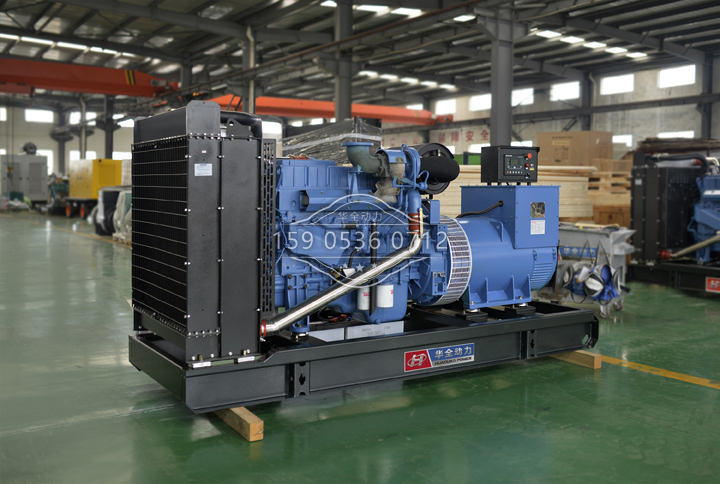

玉柴柴油发电机采用玉柴机器股份有限公司生产的YC4、YC6发电用柴油机与国内正驰牌发电机配套，打造独具特色的柴油发电机组。其机组具有结构紧凑、体积小、功率储备大、运行稳定、调速性能好、可靠性高等优点。功率范围30-1650KW，适用于工矿企业、邮电交通、商场宾馆、机关学校以及高层楼宇等场所作为常规电源或备用应急电源。
机组型号
额定功率
备用功率
发动机型号
缸数
缸径/行程
燃油消耗量
尺寸
(KW/KVA)
(KW/KVA)
(mm)
(g/kw.h)
（L×W×H）
HQYC15GF
18.5/23
20.4/26
4D24G6
4
87/103
≤200
1300x700x1200
HQYC20GF
23/29
25/32
4D24G7
4
87/103
≤200
1600x700x1200
HQYC25GF
28/35
31/39
4D24TG2
4
87/103
≤200
1600x540x1002
HQYC30GF
36/45
40/50
4D24TG0
4
87/103
≤200
1800x700x1130
HQYC40GF
50/62.5
55/69
YC4FA75-D34
4
96/103
≤205
1800x700x1130
HQYC50GF
60/75
66/83
YC4D90-D34
4
108/115
≤205
1900x700x1130
HQYC75GF
80/100
88/110
YC4D120-D30
4
108/115
≤205
2150x850x1320
HQYC100GF
103/129
113/141
YC4D155-D30
4
108/115
≤205
2200x890x1380
HQYC100GF
110/138
121/151
YC4A165-D30
4
108/132
≤210
2140x880x1370
HQYC120GF
125/157
138/173
YC4A190-D30
4
108/132
≤210
2400x790x1380
HQYC120GF
125/156
138/173
YC6A190-D30
6
108/132
≤200
2300x970x1380
HQYC150GF
155/194
171/214
YC6A230-D30
6
108/132
≤200
2400x890x1380
HQYC160GF
165/206
181/226
YC6A245-D30
6
108/132
≤200
2530x990x1400
HQYC200GF
235/294
259/324
YC6MK350-D30
6
123/145
≤195
2850x1050x1610
HQYC250GF
281/351
309/386
YC6MK420-D30
6
123/145
≤195
3000x1200x1680
HQYC300GF
335/419
370/463
YC6K500-D30
6
129/155
≤192
3000x1200x1580
HQYC350GF
389/486
420/525
YC6K570-D30
6
129/165
≤192
3320x1196x1657
HQYC400GF
441/551
485/606
YC6T660-D31
6
145/165
≤195
3480x1300x1823
HQYC450GF
520/650
572/715
YC6TD780-D31
6
152/180
≤195
3600x1500x1910
HQYC500GF
561/701
616/770
YC6TD840-D31
6
152/180
≤195
3600x1500x1910
HQYC550GF
605/756
665/831
YC6TD900-D31
6
152/180
≤195
3900x1500x1910
HQYC600GF
668/835
735/919
YC6TD1000-D30
6
152/180
≤195
3900x1500x1995
HQYC600GF
680/850
748/935
YC6C1020-D31
6
200/210
≤195
4400x1680x2350
HQYC640GF
715/894
787/984
YC6C1070-D31
6
200/210
≤195
4450x1600x2330
HQYC720GF
815/1019
897/1121
YC6C1220-D31
6
200/210
≤195
4550x1700x2540
HQYC800GF
880/1100
968/1210
YC6C1320-D31
6
200/210
≤195
4550x1770x2600
HQYC900GF
1016/1270
1118/1398
YC6C1520-D31
6
200/210
≤195
4550x1800x2512
HQYC1000GF
1120/1400
1230/1538
YC12VC1680-D31
12
200/210
≤196
5170x2100x2672
HQYC1200GF
1380/1725
1520/1900
YC12VC2070-D31
12
200/210
≤196
5307x2100x2680
HQYC1350GF
1520/1900
1670/2088
YC12VC2270-D31
12
200/210
≤196
5307x2100x2680
HQYC1500GF
1680/2100
1850/2313
YC12VC2510-D31
12
200/210
≤196
5650x2650x3008
HQYC1600GF
1805/2256
1985/2481
YC12VC2700-D31
12
200/210
≤196
5700x2680x3160
HQYC1800GF
2005/2506
2206/2758
YC16VC3000-D31
16
200/210
≤196
5750x2700x3200
HQYC2000GF
2205/2756
2426/3033
YC16VC3300-D31
16
200/210
≤196
5800x2750x3230
HQYC2200GF
2405/3006
2646/3308
YC16VC3600-D31
16
200/210
≤196
5890x2800x3300
机组型号
额定功率
备用功率
发动机型号
缸数
缸径/行程
燃油消耗量
尺寸
(KW/KVA)
(KW/KVA)
(mm)
(g/kw.h)
（L×W×H）
HQYC15GF
18/23
19.8/25
YC2105D
2
105/120
≤245
1600x650x1193
HQYC15GF
18/23
19.8/25
YC2108D
2
108/120
≤245
1600x650x1193
HQYC20GF
24/30
26.4/33
YC2115D
2
115/120
≤245
1352x650x1200
HQYC30GF
40/50
44/55
YC4D60-D21
4
108/115
≤240
1920x740x1180
HQYC40GF
40/50
44/55
YC4D60-D21
4
108/115
≤240
1920x740x1180
HQYC50GF
55/68.8
60.5/76
YC4D85Z-D20
4
108/115
≤230
2000x740x1180
HQYC60GF
60/75
66/82.5
YC4D90Z-D21
4
108/115
≤230
2000x740x1180
HQYC60GF
70/88
73.5/92
YC4A100Z-D20
4
108/132
≤205
2000x750x1180
HQYC75GF
90/113
99/124
YC6B135Z-D20
6
108/125
≤197
2230x865x1373
HQYC100GF
103/129
113/141
YC6B155L-D21
6
108/125
≤196
2320x890x1403
HQYC120GF
120/150
132/165
YC6B180L-D20
6
108/125
≤196
2430x890x1403
HQYC150GF
155/194
170.5/213
YC6A230L-D20
6
108/132
≤215
2460x940x1341
HQYC160GF
165/206
181/226
YC6A245L-D21
6
108/132
≤215
2460x940x1341
HQYC200GF
235/293.75
259/323
YC6MK350L-D20
6
123/145
≤195
2920x1086x1558
HQYC250GF
281/351
309/386
YC6MK420L-D20
6
123/145
≤195
3040x1096x1592
HQYC300GF
321/401
352/440
YC6MJ480L-D20
6
131/145
≤210
3040x1096x1592
HQYC360GF
401/501
441/551
YC6T600L-D22
6
145/165
≤195
3480x1300x1824
机组型号
额定功率
备用功率
发动机型号
缸数
缸径/行程
燃油消耗量
尺寸
(KW/KVA)
(KW/KVA)
(mm)
(g/kw.h)
（L×W×H）
HQM1100GF
1205/1506
1338/1673
12V4000G23R
12
170/210
-
6100x2100x2400
HQM1250GF
1420/1775
1575/1969
12V4000G23/G43
12
170/210
-
6150x2150x2400
HQM1400GF
1570/1963
1750/2188
12V4000G63/G83
12
170/210
-
6150x2150x2400
HQM1600GF
1798/2248
1968/2460
16V4000G23/G43
16
170/210
-
6500x2600x2500
HQM1750GF
1965/2456
2185/2731
16V4000G63/G83
16
170/210
-
6550x2600x2500
HQM2000GF
2200/2750
2420/3025
20V4000G23/G43
20
170/210
-
8300x2950x2550
HQM2200GF
2420/3025
2670/3338
20V4000G63/G83
20
170/210
-
8300x2950x2550
HQM2300GF
2590/3238
2850/3563
20V4000G63L/G83L
20
170/210
-
8300x2950x2550
